*astTECS IP Phones
*astTECS IP Phones are available in three models With & Without POE – *ast520, *ast550, *ast550G, *ast600W (wi-fi phone) , are feature plug and play deployment, HD voice, multiple line appearances, contexual soft keys, phone books , DND and advanced applications at attractive price to suit your budget.
The ergonomically designed phones are equipped with essential features that the modern business environments demand and suitable for both small businesses and large office applications. The unit is fully supports all of the major SIP based IP PBX/softswith/IMS platform.
They are perfect for office and business call activities, and hence popularly known as Office IP Phones
IP Phone Features:
- Call Hold
- 3 way conference
- Call Waiting
- Ringtone selection/import/delete
- Call forward
- Message waiting indication LED
- Call return
- Tone configuration volume control
- Call transfer (blind/busy/ask)
- Multi-language
- Caller ID Display
|
- Direct IP call without SIP proxy
- Speed dial
- Blacklist
- Phone mute
- Hands free indicator
- SMS & Voicemail
- Soft keys programmable
- DND
- Support POE
- Dialed/received/missed calls
- XML phonebook search and inputs & outputs
- Auto- answer
- Supports PC control
|

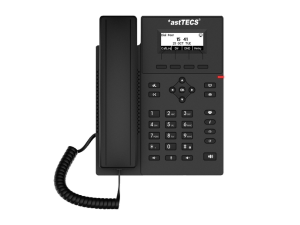

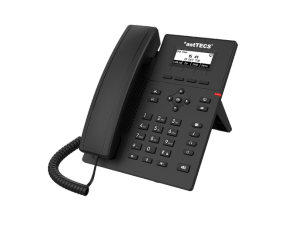

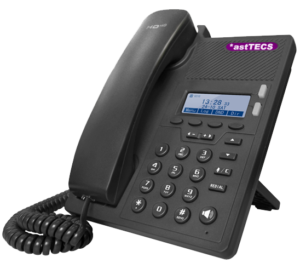

*ast 520 IP Phone
Entry Level VoIP Phone (With/Without POE)
Product Description for *ast 520
| Display
|
Key Features
- 2 SIP accounts
- POE Enabled
- Keypad: 31 keys, including, 4 Soft-keys, 7 Function keys, 4 Navigation keys + 1 OK key,12 Standard Phone Digits keys,2 Volume Control keys, Up/Down,
- 1 Hands-free key,
- Phonebook (500 entries)
- Call log (100 entries, in/out/missed)
- HD Voice
|
Call Features
- Call out / answer / reject
- Mute / Unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer(Attended/Unattended)
- Call Parking / Pick-up (depending on server)
- Redial/Auto-Redial
- Do-Not-Disturb (per line / per phone)
- Auto-Answering (per line)
- Voice Message (on server)
- Local 3-way Conference
- Hot Line
- Hot-Desking
|
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN, DHCP, PPPoE, 802.1x, L2TP (Basic Unencrypted),
- OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR069
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
|
| Wall Mounted – Supported |
QoS – Supported
|
Power Efficiency
- DC Power Input: 5V / 0.6A
- Power Consumption: Idle –~1.3W
- Peak – ~4.3W
|
| Physical
|
| Compliance
|

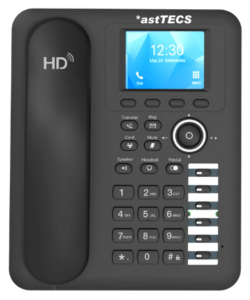

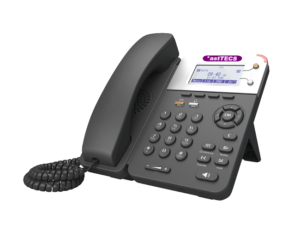

*ast 550 IP Phone
Business VoIP Phone (With/Without POE)
Product Description for *ast 550
| Display
|
Key Features
- 2 SIP Accounts
- Hotline
- 33 Keys, including 2 programmable keys
- Function customizable keys
- Support switching SIP server & second server
- Phonebook (local upto 1000 entries)
- Call history : dialed / received / missed (100 entries)
- One – key back (c)
|
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; DNS
- SRV (RFC3263); Redundant server support NAT Traversal: STUN mode DTMF: In-Band,
- RFC2833, SIP Info, Auto HTTP/HTTPS Web Management IP Assignment: Static/DHCP/PPPoE
- Bridge/Router mode for PC port TFTP/DHCP/PPPoE client DNS client, NAT/DHCP server Layer
- 3 ToS, DSCP
|
| Wall Mounted – Supported |
QoS – Supported
|
Power Efficiency
- Power adapter: AC 100~240V
- Input : DC 5V/1A
- Output Power over Ethernet
- IEEE 802.3af,class 0(Option)
- Power consumption: 1.4-2.6W
|
Physical
- Net weight: 0.90kg
- Dimension: 186x202x92mm
|
| Compliance
|
*ast 550 Gigabyte IP Phone
Business Voip Phone (Without POE)
*astTECS introduces with Gigabyte based IP Phone With & Without POE for Business and Call Centers with auto-sensing 10/100/1000 Mbps Ethernet Ports.
Product Description for *ast 550 Gigabyte:
| Display
|
Key Features
- 3 SIP Accounts
- 34 Keys, including 2 programmable keys
- Function customizable keys
- Direct IP call without SIP proxy
- Phonebook (Upto 800 entries)
- Call history : dialed / received / missed (50 entries)
- Black list, Hand-free indicator.
- Caller ID display, Redial, Mute, DND
- One standard (42.5°) level bracket and wall-mountable.
- XML/LDA, Contact Search.
- HD Voice: HD Codec, HD Speaker, HD Handset.
|
Protocols
- SIP v1 (RFC2543), v2 (RFC3261)
- Network Interface: 10/100/1000 Mbps Ethernet Ports
- SIP connection: Proxy mode & Peering Points mode
- SRTP voice encryption(RFC3711)
- Redundant server support
- NAT Traversal: STUN mode
- DTMF: In-Band, RFC2833, SIP Info, Auto
- HTTP/HTTPS Web Management
- IP Assignment: Static/DHCP/PPPoE
- Bridge/Router mode for PC port
- TFTP/DHCP/PPPoE client DNS client, NAT/DHCP server Layer
- TR069，IPv6，HTTPS web management，802.1x，OPEN VPN
|
| Wall Mounted – Supported |
QoS – Supported
|
Power Efficiency
- Power adapter: AC 100~240V
- Input : DC 5V/1A
- Output Power over Ethernet
- IEEE 802.3af,class 0
- Power consumption: 1.4-2.6W
|
Physical
- Net weight: 0.90kg
- Dimension: 186x202x92mm
|
| Compliance
|

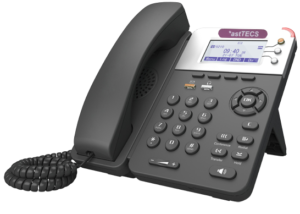

*ast600W (WiFi Phone)
Product Description for *astW600 (Wifi Phone)
| Display
|
Key Features
- 3 SIP Accounts
- Hotline
- Support 5.8G WiFi
- 34 Keys, including 2 programmable keys
- 15 paperless programmable keys
- Function customizable keys
- Support switching SIP server & second server
- Phonebook (local upto 1000 entries)
- Call history : dialed / received / missed (100 entries)
- One – key back (c)
|
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; DNS
- SRV (RFC3263); Redundant server support NAT Traversal: STUN mode DTMF: In-Band,
- RFC2833, SIP Info, Auto HTTP/HTTPS Web Management IP Assignment: Static/DHCP/PPPoE
- Bridge/Router mode for PC port TFTP/DHCP/PPPoE client DNS client, NAT/DHCP server Layer
- 3 ToS, DSCP
|
| Wall Mounted – Supported |
QoS – Supported
|
Power Efficiency
- Power adapter: AC 100~240V
- Input : DC 5V/1A
- Output Power over Ethernet
- IEEE 802.3af,class 0(Option)
- Power consumption: 1.4-2.6W
|
Physical
- Net weight: 0.90kg
- Dimension: 186x202x92mm
|
| Compliance
|

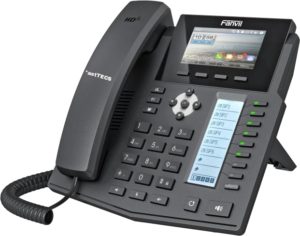

*ast590 IP Phone
Product Description for *ast590 IP Phone
Co-brand with Fanvil
Display
- Main LCD x1: 3.6 inch (480×320) color-screen LCD
- DSS Key-mapping LCD x1: 64×192 dot-matrix
|
Key Features
- Gigabit Ethernet – 10/100/1000Mbps Ethernet with POE enabled.
- Keypads: 38 Keys, including 4 Soft-Keys,
4 Function keys
4+1 Navigation keys + OK
12 Standard Phone Digits keys
3 Volume Control keys, Up/Down/Mute (Microphone), 1 Hands-free key
- 6 SIP Lines
- Hotline / Hot Desking
- Support Bluetooth headset (Through USB Dongle)
- Programmable DSS/Soft keys
- Caller ID Display
- Phonebook (with 1000 entries)
- Call History: (300 entries, in/out/missed)
- Black/White List Call Filtering
- High Interoperability – Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
- Handset(HS) / Hands-free(HF) / Headpho
- ne(HP) mode
- Local 3-way Conference
Technical
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP (Basic Unencrypted) / OpenVPN
- VLAN
|
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- PPPoE
- 802.1x
- L2TP (Basic Unencrypted)
- OpenVPN
- HTTP/HTTPS
- FTP/TFTP
- SNTP
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
|
Deployment & Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
|
| QOS: Supported |
Power Efficiency
- DC Power Input: 12V/1A
- Power Consumption: POE: Idle – ~ 2.4W, Peak – ~8.08W,
- Adapter: Idle – ~ 1.4W, Peak – ~6.54W
- Working Temperature: 0 ~ 40℃
- Working Humidity: 10 ~ 65%
- Optional External Power Supply
- POE Enabled
|
| Wall Mounted – Desktop Stand / Wall-mount |
| Compliance
|
