*astTECS provides TEC Grade COTS (Commercial off-the-shelf) Servers for enterprises, Railways, and PSUs. The hardware is TEC certified by DoT, Govt of India, a mandatory requirement for the purchase of Telecom Equipment in India.
PRODUCT BUNDLE
TECHNICAL SPECIFICATION FOR S-SERIES MODEL (*Customisation possible)
| E50 | E100-E200 | E300-E1000 | |
|---|---|---|---|
| INTERFACES | Value Network Interface: 2X Ethernet 10/100/1000 base RJ-45 ISDN: PRI Interface (optional) Mobile: 32 GSM (optional), 1 SIM/ channel |
Value Network Interface: 2X Ethernet 10/100/1000 base RJ-45 ISDN: PRI Interface (optional) Mobile: 32 GSM (optional), 1 SIM/ channel |
Value Network Interface: 2X Ethernet 10/100/1000 base RJ-45 ISDN: PRI Interface (optional) Mobile: 32 GSM (optional), 1 SIM/ channel |
| PROCESSOR | Intel® Pentium® Gold G6405 Processor (4M Cache, 4.10 GHz) | Intel® Core™ i3-10105 Processor (6M Cache, up to 4.40 GHz) | Intel(R) Xeon(R) E-2224 CPU @ 3.40GHz, Intel Xeon E-2224 CPU @ 3.40GHz |
| CPU SPECIFICATIONS | Total Cores – 2 Total Threads – 4 Processor Base Frequency – 4.10 GHz Cache – 4 MB Intel® Smart Cache Bus Speed – 8 GT/s TDP – 58 W Max Memory Size (dependent on memory type) – 128 GB Memory Types – DDR4-2666 Max # of Memory Channels – 2 Max Memory Bandwidth – 41.6 GB/s |
Total Cores – 4 Total Threads- 8 Max Turbo Frequency – 4.40 GHz Intel® Turbo Boost Technology 2.0 Frequency – 4.40 GHz Processor Base Frequency – 3.70 GHz Cache – 6 MB Intel® Smart Cache Bus Speed – 8 GT/s TDP – 65 W |
Total Cores – 4 Total Threads – 4 Max Turbo Frequency – 4.60 GHz Intel® Turbo Boost Technology 2.0 Frequency – 4.60 GHz Processor Base Frequency – 3.40 GHz Cache – 8 MB Intel® Smart Cache Bus Speed – 8 GT/s TDP – 71 W Max Memory Size (dependent on memory type) – 128 GB Memory Types – DR4-2666 Max # of Memory Channels – 2 ECC Memory Supported- Yes |
| DIMENSIONS | 1U/2U Form factor chassis. | 2U / 4U Form factor chassis. | 2U / 4U Form factor chassis. |
| MOUNTING | 19? rack | 19? rack | 19? rack |
| POWER | 800 MA peak, operational 300 MA max at +3.3V, 4U-100-240 VAC, 200W. | 800 MA peak, operational 300 MA max at +3.3V, 4U-100-240 VAC, 200W. | 800 MA peak, operational 300 MA max at +3.3V, 4U-100-240 VAC, 200W. |
| TEMPERATURE | 0-50°C | 0-50°C | 0-50°C |

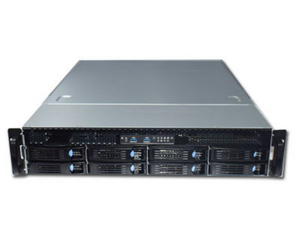

TECHNICAL SPECIFICATION FOR S1000C MODEL
| SPECIFICATIONS | S1000C |
|---|---|
| Processor | Intel Xeon 4-core processor |
| Type | 2U Rack mount |
| Motherboard Form Factor | INTEL, Ext.ATX- 12″ * 13″ |
| Dimension (D*W*H) | 660 * 430 * 88 mm |
| RAM Hard Disk | 16 GB RAM (1 No.) 1TB (2 nos.s) |
| Cooling Fans | 3 * 8 cm Hot swappable fans |
| Front I/O Ports | 2 * USB 3.0 |
| Rackmount Kit | Standard |
| Backplane Connector | 8 * Discrete SATA |
| Rear Window | Low Profile |
| Color | Silver |
| SMPS | FSP500-702UH FSP850-50FGPH1 FSP550-50ERS |
| Net Weight | 11kg |
