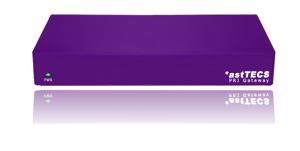

*astTECS PRI Gateway gives the freedom to connect any enterprise telephony equipment to any internet based next generation network.
With the integrated E1/T1 interfaces and the E-SBC functionality the *astTECS PRI Gateway is the ideal demarcation point for the interface between the enterprise and the network for existing and new technologies.
Using a high precise 5ppm clock and multiple CODECS for voice and fax ensures full ISDN quality. With the integrated header and routi9ng manipulation capabilities a smooth migration for all enterprise equipment and network requirement is guaranteed.
- Scalable Solution for up to 2 E1/T1 Ports.
- Demarcation point for ISDN & IP PBXs
- Full ISDN quality for voice, fax and data.
- High precise 5ppm clock for full fax and DECT support
- E-SBC feature set for VoIP-to-VoIP & ISDN-to-VoIP.
FEATURES
Call Routing
- Multiple SIP registrars
- Multilevel alternative routing
- Black / White list
- QoS routing
Call Manipulation
- Header & number manipulation
- Codec translation & transrating
- Overlap / en-block conversion
|
Advanced
- Integrated SIP registrar & location Server
- Integrated E-SBC feature set
- ISDN supplementary services Conversion
- Advice of Charge (AoC) generation
- Full IP routing & firewall capabilities
- Remote provisioning
- VPN
- SNMP
|
TECHNICAL SPECIFICATION
| Architecture |
Interfaces |
Processor
- Quad-Core 1 Ghz
- 1 GB RAM
- 8 GB Flash RAM
Ethernet
ISDN
- E1/T1
- High Precise 5 ppm clock
- TE/NT mode
- CRC4/double frame mode
|
Ethernet
- 2X10/100 Base-T RJ-45
- WLAN 802.11b/g/n
ISDN
- 2XE1 interfaces
- High Precise 5 ppm clock
- 100 – 240 VAC, 10W
- External power Supply
- Low power consumption (<4W)
|
|
| Signaling |
Physical Parameters |
ISDN
- DSS1, Q.931, SS7*
- ISDN supplementary services
VoIP
- SIP (RFC 3261 ff)
- G.711, G.729, G.726
- Fax: T.38 & G.711
- Clear Channel
|
- Size(WxHxD) : 144X42X94mm
- Weight : 0.3 KG
- Material : ABS
- Mounting : Desktop, Wall Mounting
|
|
| Environmental Conditions |
- Temperature : -5oC to 40oC
- Humidity : 5% to 80% (non- condensing)
- Certifications : EMC, Safety, CE
|
*astPG 30 PRI Gateway
The *astTECS PRI Gateway *astPG 30 Supports upto 30 concurrent calls. A perfect solution for cost effective call routing.
FEATURES
Call Routing
- Multiple SIP registrars
- Multilevel alternative routing
- Black / White list
- QoS routing
Call Manipulation
- Header & number manipulation
- Codec translation & transrating
- Overlap / en-block conversion
|
Advanced
- Integrated SIP registrar & location Server
- Integrated E-SBC feature set
- ISDN supplementary services Conversion
- Advice of Chahrge (AoC) generation
- Full IP routing & firewall capabilities
- Remote provisioning
- VPN
- SNMP
|
TECHNICAL SPECIFICATION
| Architecture |
Interfaces |
Processor
- Quad-Core 1 Ghz
- 1 Gbyte RAM
- 8 Gbyte Flash RAM
Ethernet
ISDN
- E1/T1
- High Precise 5 ppm clock
- TE/NT mode
- CRC4/double frame mode
|
Ethernet
- 2X10/100 Base-T RJ-45
- WLAN 802.11b/g/n
ISDN
- 2XE1 interfaces
- High Precise 5 ppm clock
- 100 – 240 VAC, 10W
- External power Supply
- Low power consumption (<4W)
|
|
| Signaling |
Physical Parameters |
ISDN
- DSS1, Q.931, SS7*
- ISDN supplementary services
VoIP
- SIP (RFC 3261 ff)
- G.711, G.729, G.726
- Fax: T.38 & G.711
- Clear Channel
|
- Size(WxHxD) : 144X42X94mm
- Weight : 0.3 KG
- Material : ABS
- Mounting : Desktop, Wall Mounting
|
|
| Enviromental Conditions |
- Tempratture : -5oC to 40oC
- Humidity : 5% to 80% (non- condensing)
- Certifications : EMC, Safety, CE
* – Optional |
*astPG 60 PRI Gateway
The *astTECS PRI Gateway *astPG 60 Supports upto 60 concurrent calls. A perfect solution for cost effective call routing.
FEATURES
Call Routing
- Multiple SIP registrars
- Multilevel alternative routing
- Black / White list
- QoS routing
Call Manipulation
- Header & number manipulation
- Codec translation & transrating
- Overlap / en-block conversion
|
Advanced
- Integrated SIP registrar & location Server
- Integrated E-SBC feature set
- ISDN supplementary services Conversion
- Advice of Chahrge (AoC) generation
- Full IP routing & firewall capabilities
- Remote provisioning
- VPN
- SNMP
|
TECHNICAL SPECIFICATION
| Architecture |
Interfaces |
Processor
- Quad-Core 1 Ghz
- 1 Gbyte RAM
- 8 Gbyte Flash RAM
Ethernet
ISDN
- E1/T1
- High Precise 5 ppm clock
- TE/NT mode
- CRC4/double frame mode
|
Ethernet
- 2X10/100 Base-T RJ-45
- WLAN 802.11b/g/n
ISDN
- 2XE1 interfaces
- High Precise 5 ppm clock
- 100 – 240 VAC, 10W
- External power Supply
- Low power consumption (<4W)
|
|
| Signaling |
Physical Parameters |
ISDN
- DSS1, Q.931, SS7*
- ISDN supplementary services
VoIP
- SIP (RFC 3261 ff)
- G.711, G.729, G.726
- Fax: T.38 & G.711
- Clear Channel
|
- Size(WxHxD) : 144X42X94mm
- Weight : 0.3 KG
- Material : ABS
- Mounting : Desktop, Wall Mounting
|
|
| Enviromental Conditions |
- Tempratture : -5oC to 40oC
- Humidity : 5% to 80% (non- condensing)
- Certifications : EMC, Safety, CE
* – Optional |
