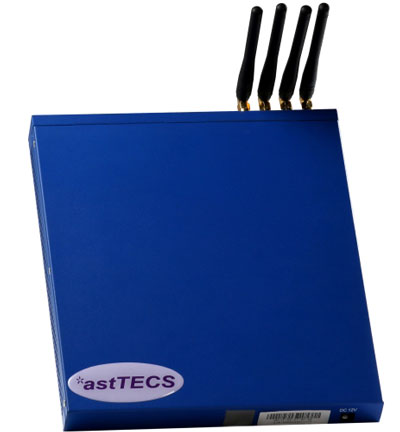

FMC Gateway Solutions

Fixed Mobile Convergence (FMC)- The New Workplace is Anywhere

Fixed Mobile Convergence (FMC) solution from *astTECS help provide a seamless workplace for your enterprise's increasingly mobile workforce.

Product bundles:

• *ast FMC4 - With *ast g4 GSM card, Asterisk installed
• *ast FMC8 - With *ast g4 GSM card, Asterisk installed

Download Brochure

FMC Gateway Technical Specifications

Interfaces:

• Network interface: 2X Ethernet 10/100 base-RJ-45
• ISDN: PRI interface (optional)
• Mobile: *ast g4 GSM card 1 antenna/4 channels

Protocols:

• VoIP: SIP, H.323, MGCp, SCCP, IAX 2
• ISDN: PRI DSS 1 (Q931, National variant)
• Mobile: GSM 850/1800/1900 MHZ channels.

Codecs:

ADPCM, G.711(A-Law & u-Law, G.722, G.723.1(pass through),G.726, G.729 (through purchase of a commercial license), GSM, iLBC, Linear, LPC-10 Speex

PRI Card:

T1 / E1 port with optimum PCI interface.

Dimensions:

2U form factor chasis.

Size:

4U: 483x177x450 mm

Mounting:

19" Rack

Power:

800 MA peak, operational 300 mA max at +3.3 V 4U – 100-240 VAC, 200 W

Temperature Range:

0-50°C

FMC Gateway Highlights

• Multiple channels behaving as one - wireless and wire line
• Integrates and exploits the advantages of two popular telecommunication networks - fixed and wireless
• Wireless - GSM, but also WiFi with integrated LCR
• Enables existing PBXes with FMC features
• Easy integration over a PRI or VoIP - SIP with existing PBX
• Voice Logger
• Parallel Ringing
• Single Voice Mail & Voice mail to email
• Instant conferencing
• Increase PBX capacity
• Centralised Cost Control and Tracking
• Interoperable with all digital PBXes
